Procedures that decompress the thoracic spinal cord are common and inevitably convey some degree of change to spinal kinematics at the surgical level. Whether or not to proceed with instrumented fusion following these procedures — to prevent spinal instability or long-term degeneration and pain — is a critically important yet largely unexplored question. Research from Cleveland Clinic’s Spine Research Lab has begun to help quantify the biomechanical effects of these types of procedures in the thoracic region. That research and its potential implications are summarized here.

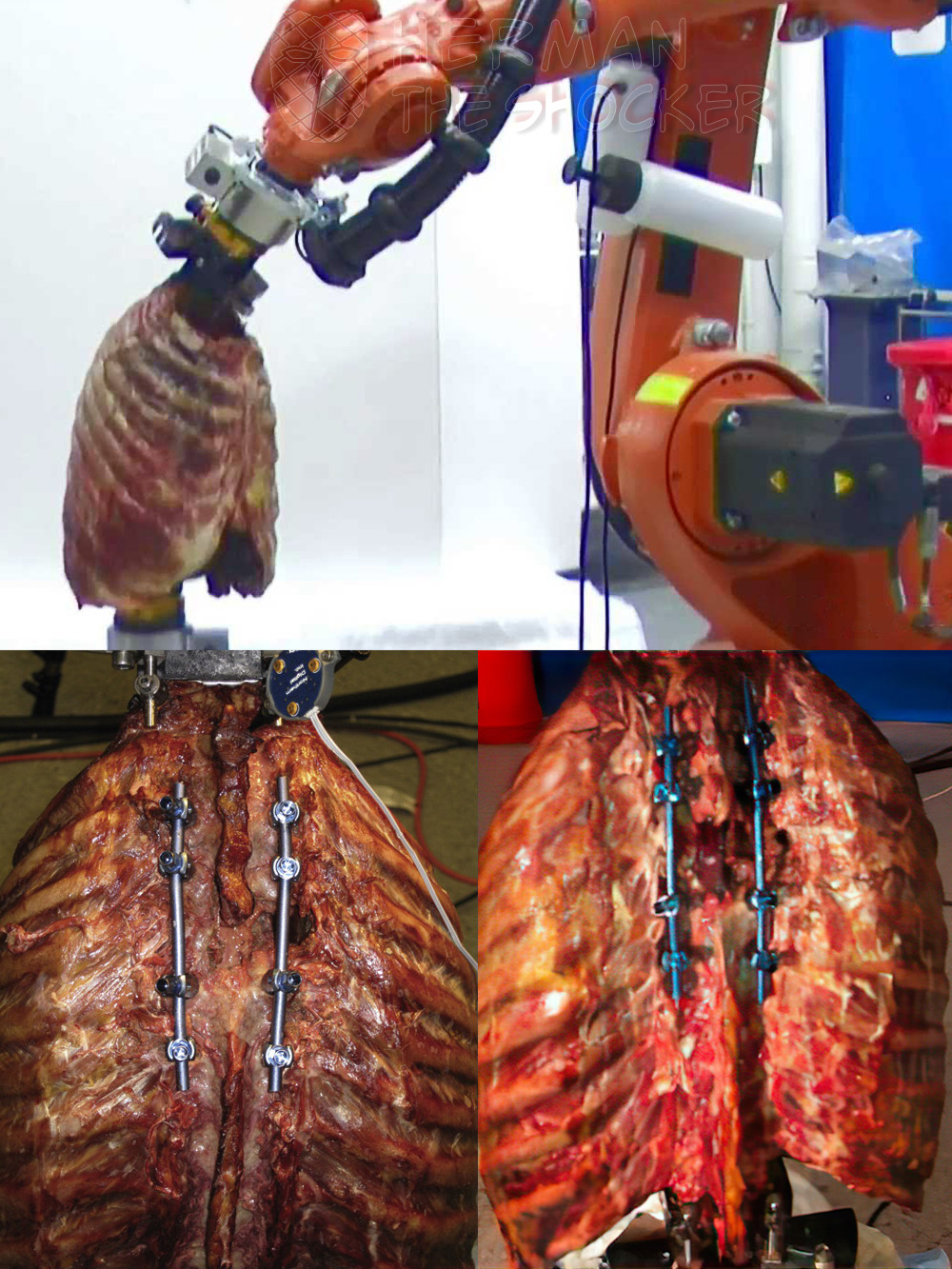

Fig.1 Robotic spine testing system. Pictured in the figure is the Kuka robot with complete thoracic torso fitted with custom fixture at the Spine Research Lab, Cleveland, OH, USA.

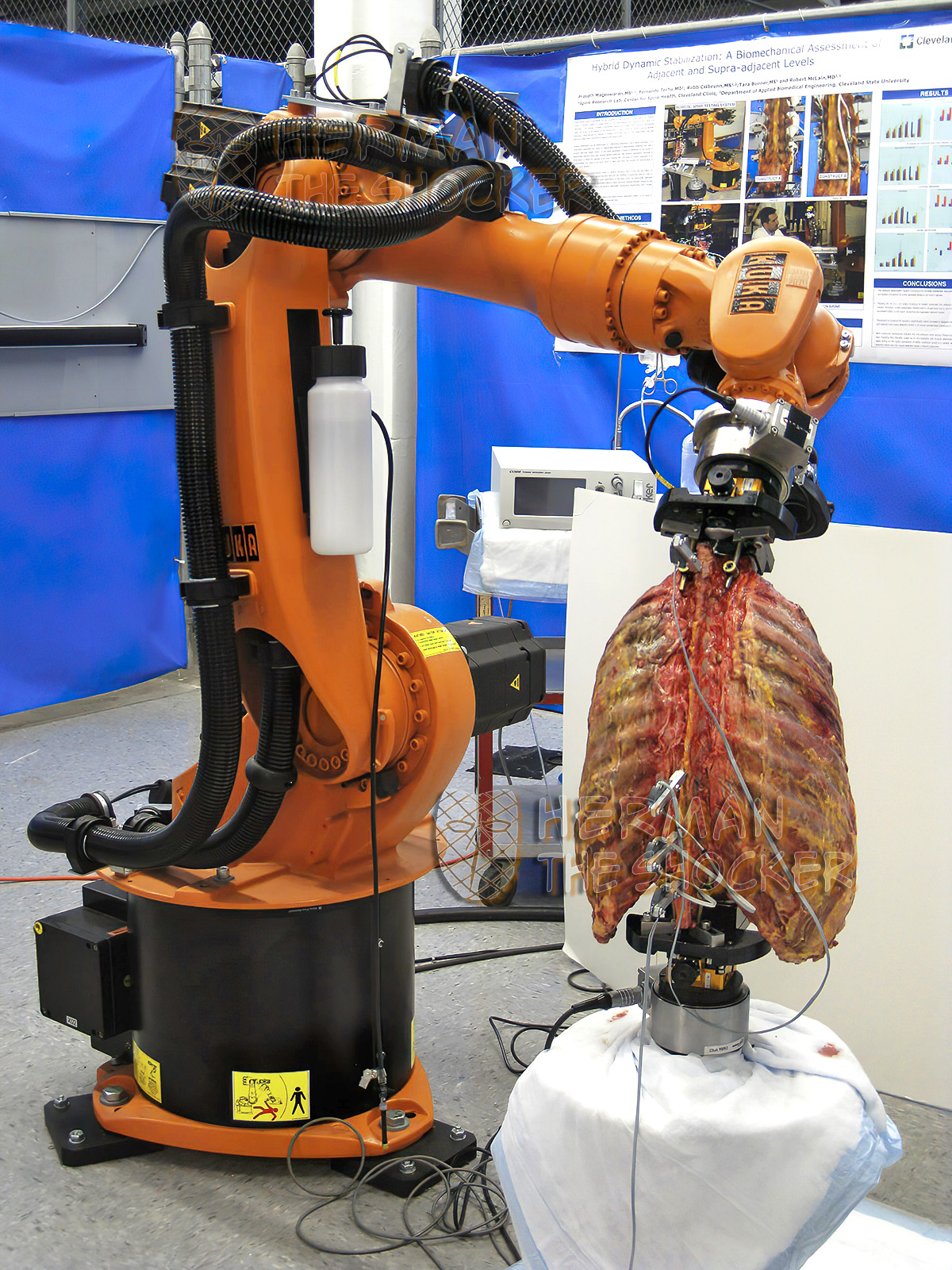

Fig.2 The robotic spine testing system with a cadaveric specimen.

Despite its specialized and resilient design, the spinal column is a frequent source of pain and disability from degeneration, disk herniation, infection, tumor, and traumatic pathologies. The thoracic spine, as the longest of the spinal segments, frequently incurs these pathologies.

Part of what makes the thoracic spine unique are the stenocostovertebral articulations and continuity of the rib cage, which afford increased stiffness and stability relative to the cervical and lumbar spine. As a testament to the contribution of the rib cage, in vitro testing shows that the thoracic spine will achieve over 700 percent greater motion in extension simply if the sternum is removed.

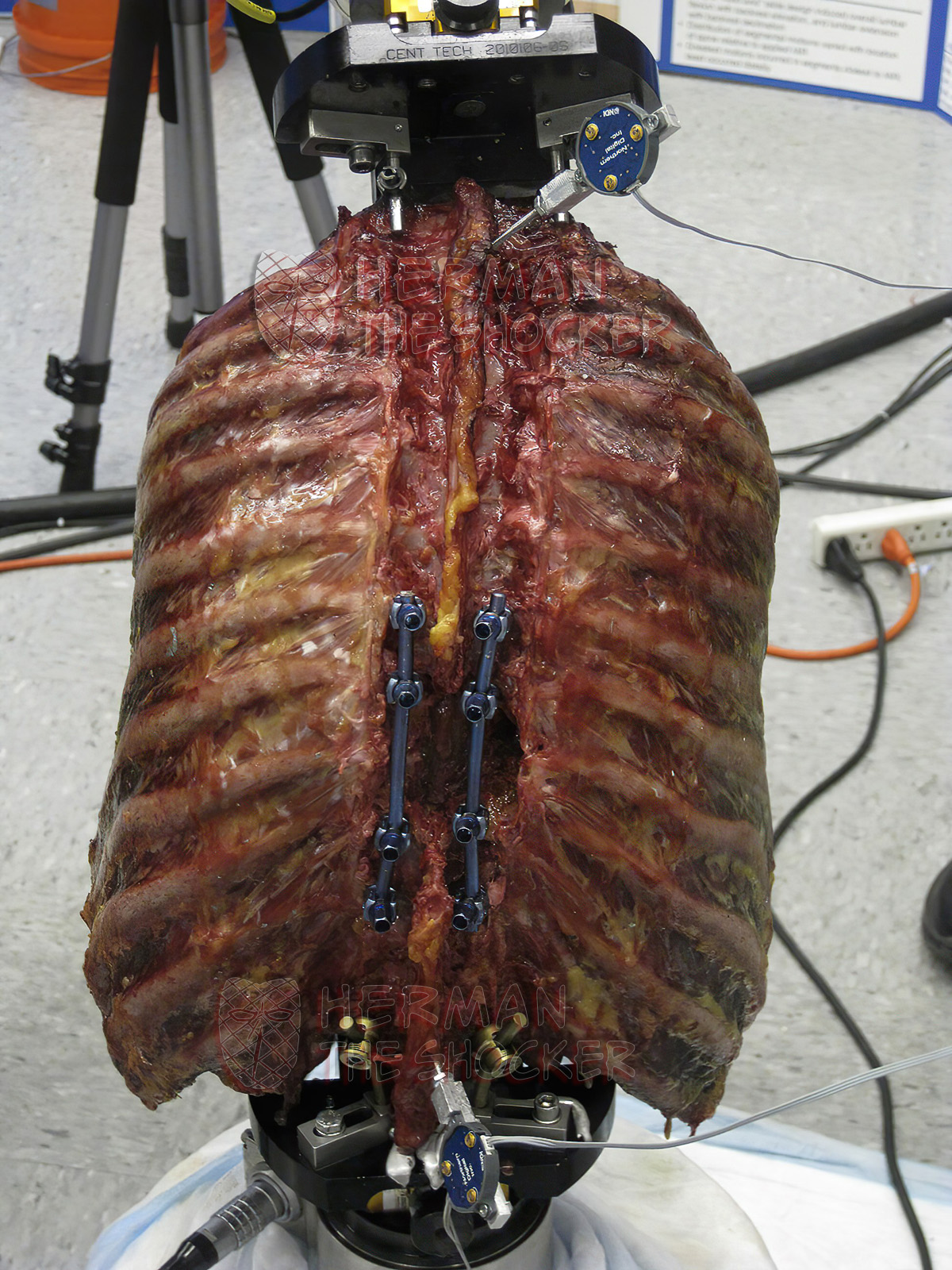

Fig.3 Photograph of a cadaveric thoracic torso with instrumented fusion.

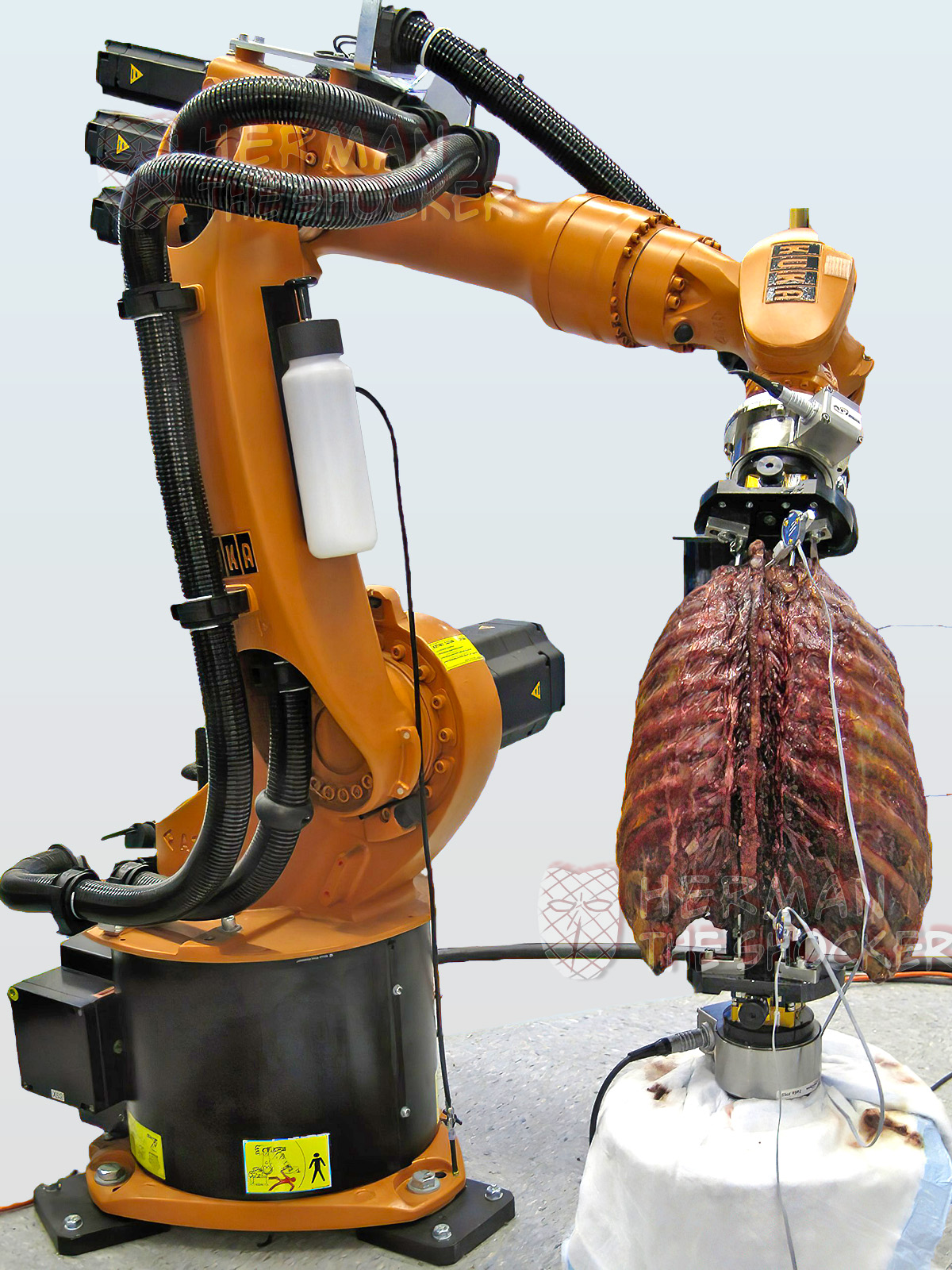

Fig.4 Photograph of the robotic spine testing system (Kuka Robot) along with a cadaveric thoracic torso fitted to the custom fixture.

Because previous platforms for cadaveric spinal testing were not equipped to test the full thoracic spine with associated rib cage, the bulk of the historical data on thoracic biomechanics has been obtained by testing specimens disarticulated from the rib cage. Therefore, biomechanical data quantifying the consequences of decompressive procedures on the thoracic spine in the clinically relevant scenario — with an intact rib cage — have been limited, in contrast to biomechanical data regarding the cervical and lumbar spine.

In 2013 we set out to fill some of this knowledge gap surrounding the stability of the thoracic spine following decompressive procedures. Specifically, we used an industrial robot manufactured by KUKA Systems GmbH (Augsburg, Germany) to perform multidirectional flexibility tests on 19 fresh-frozen human cadaveric thoracic spine specimens with the rib cage intact.


Fig.5 Robotic spine testing system.

We found that in all three planes of motion, the sequential decompressive procedures caused no statistically significant change in motion across the surgical level when compared with the intact state, likely due to the tremendous stability afforded by the thoracic rib cage. We also found that despite the presence of the semirigid rib cage, the addition of pedicle screw fixation dramatically and effectively decreased the range of motion across surgical levels if necessary. Complete results are available in our full-length publications.

Assessing Thoracic Spine Biomechanics After Decompressive Surgery

-
