July 2008

With two currently functioning orbiters, and five more missions planned in the next year, Earth's Moon may soon have seven active probes operated by five nations, with even more coming soon. NASA's plans to return humans to the Moon by 2020 are moving steadily ahead, with some concrete prototypes and initial designs beginning to emerge. Called the Constellation Program, NASA's vision involves new and upgraded launch vehicles, exploration vehicles, autonomous rovers, new spacesuits, crew and cargo vehicles, and much more. Here are seven photographs of our possible future on the Moon, and a look back, with ten images from our last visits with the Apollo missions, more than 36 years ago now.

Source : http://www.boston.com/bigpicture/200...e_and_pas.html

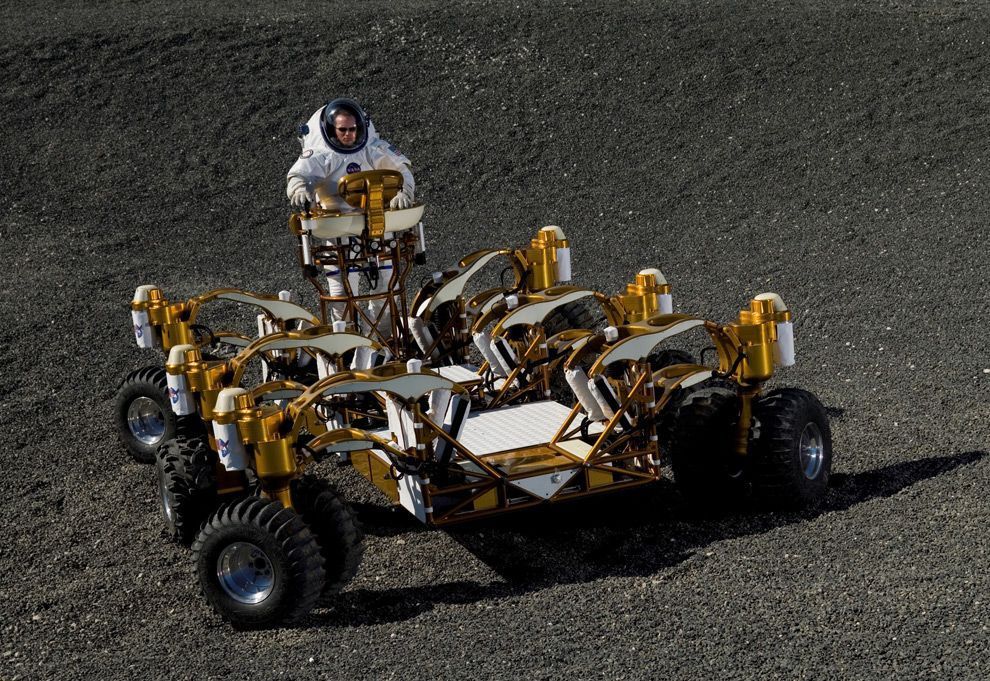

Looking Forward -- Spacesuit engineer Dustin Gohmert drives NASA's new lunar truck prototype through the moon-like craters of Johnson Space Center's Lunar Yard. The lunar truck was built to make such off roading easy, with six wheels that can be steered independently in any direction. In addition, the steering center can turn a full 360 degree, giving the driver a good view of what's ahead, no matter which way the wheels are pointing.

[güttsfükk]

During field tests near Moses Lake, WA, NASA's Autonomous Drilling Rover demonstrated dark autonomous nagivation with a light detection and ranging system.

[güttsfükk]

The Crew Mobility Chassis Prototype is NASA's new concept for a lunar truck. Researchers were trying it out at Moses Lake, WA, as part of a series of tests of lunar surface concepts. One feature is its high mobility. Each set of wheels can pivot individually in any direction, giving the vehicle the ability to drive sideways, forward, backward and any direction in between -- important if the truck becomes mired in lunar dust needs to zigzag down a steep crater wall or parallel park at its docking station.

[güttsfükk]

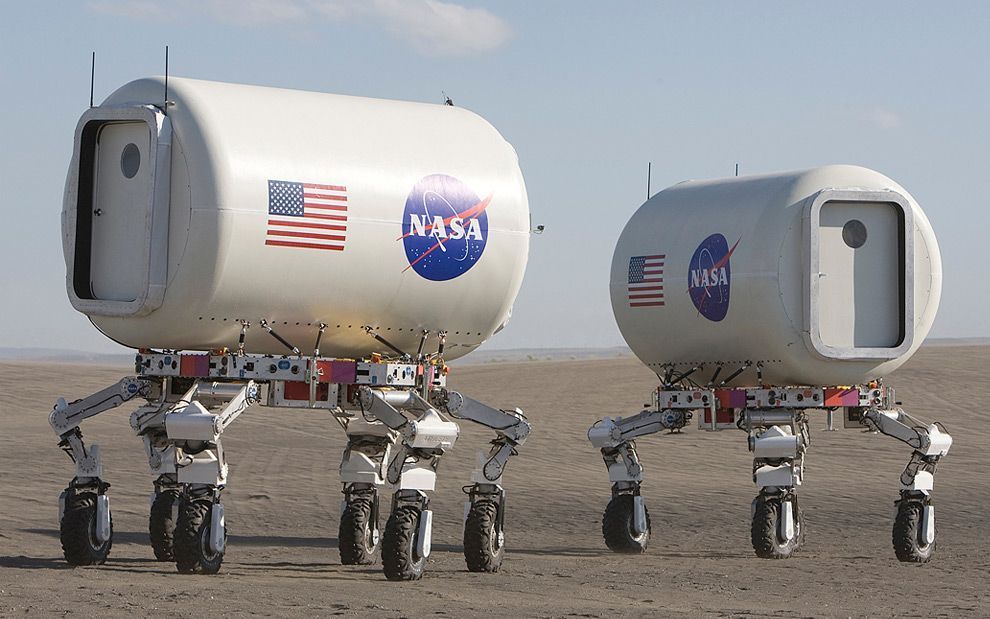

NASA's ATHLETE (All-Terrain Hex-Legged Extra-Terrestrial Explorer) robotic vehicle seen during field tests near Moses Lake, WA. Athlete could be the RV of choice for future explorers. Its multi-wheeled dexterity could allow robots or humans to load, transport, manipulate and deposit payloads to essentially any desired site on the lunar surface.

[güttsfükk]

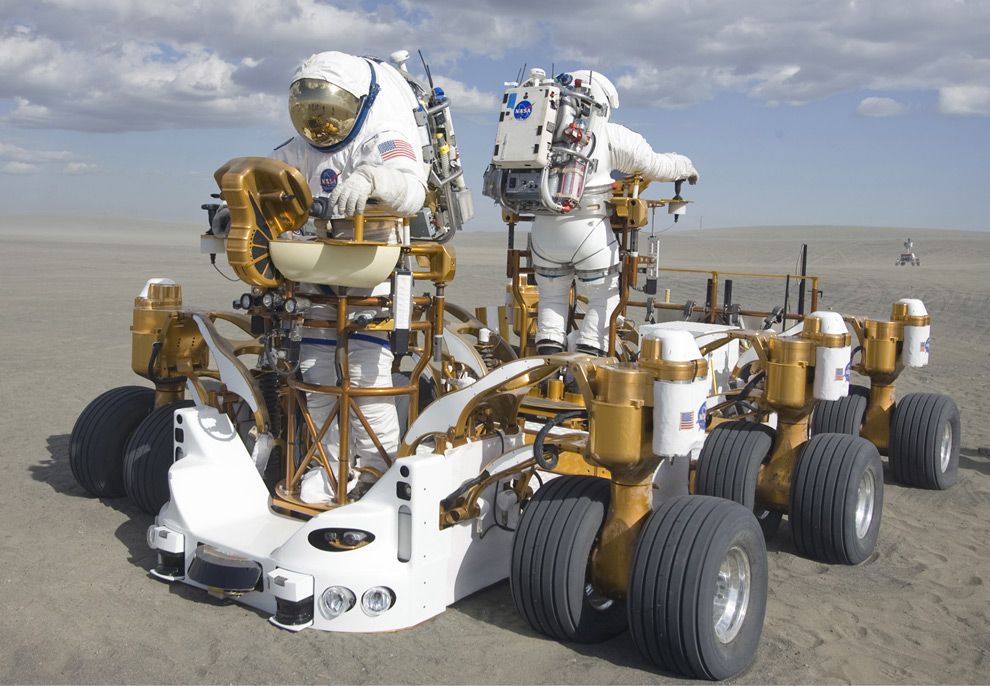

NASA's lunar truck during field tests near Moses Lake, WA. Whatever direction the lunar truck is headed, the driver has a good view. The astronauts' perches can pivot 360 degrees. The whole wehicle can be lowered to the ground for easy access in bulky spacesuits.

[güttsfükk]

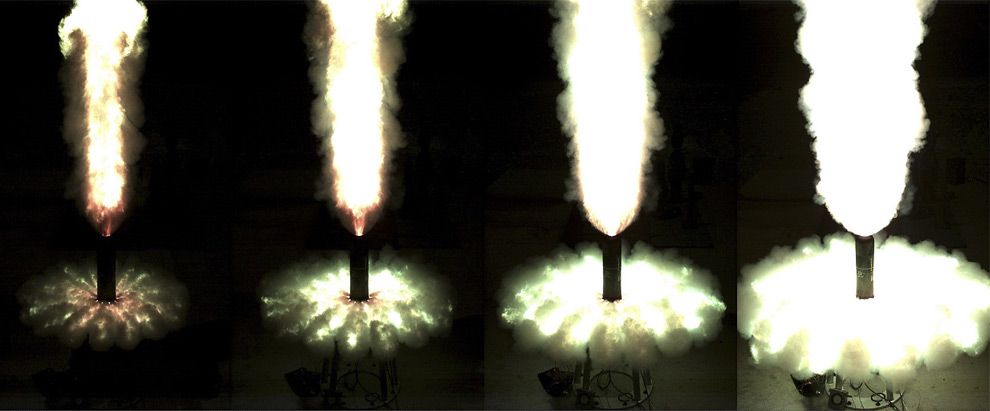

Testing a critical Launch Abort System. NASA and Alliant Techsystems (ATK) performed an igniter test of the Orion Launch Abort System at ATK's Promontory Facility on June 13, which lasted for approximately 150 milliseconds. The igniter was just over 36 inches tall and was the first time the newly developed igniter had been tested. Its purpose is to ignite the primary motor on the LAS that pulls the capsule away during an emergency on the pad or during launch.

[güttsfükk]

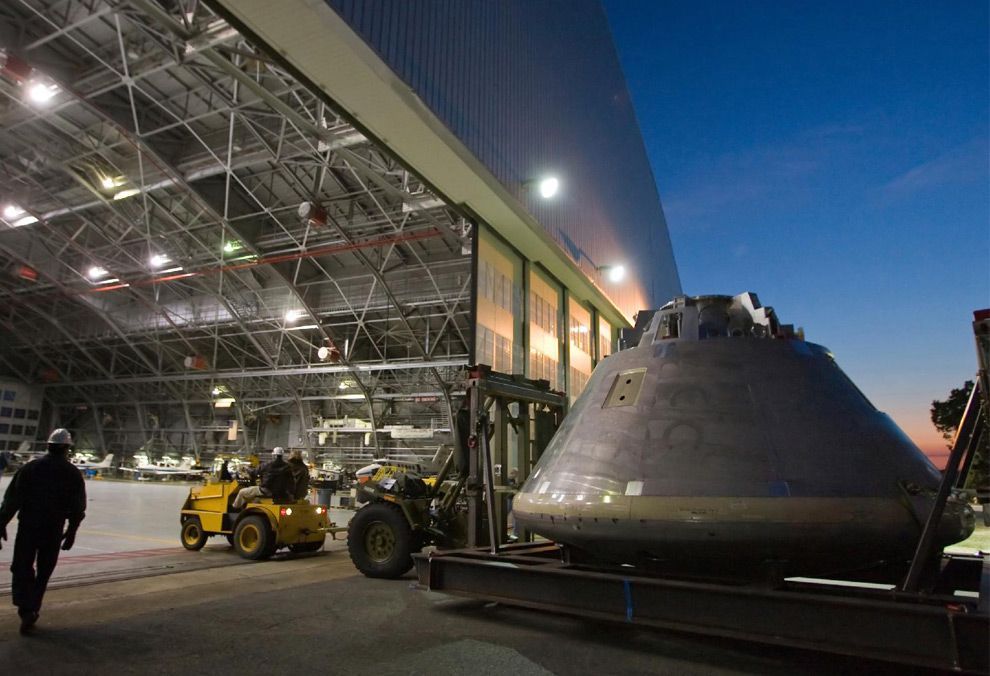

A mock-up of the NASA's new Orion space capsule heads to its temporary home in a hangar at NASA's Langley Research Center in Hampton, Va. In late 2008, the full-size structural model will be jettisoned off a simulated launch pad at the U.S. Army's White Sands Missile Range in New Mexico to test the spacecraft's astronaut escape system, which will ensure a safe, reliable method of escape for astronauts in case of an emergency. NASA's Constellation program is building the Orion crew vehicle to carry humans to the International Space Station by 2015 and to the moon beginning in 2020.

[güttsfükk]

And Looking Back -- A view of the Moon's surface taken from lunar orbit in the summer of 1971. Apollo 15 was the ninth manned mission to the Moon.

[güttsfükk]

April 20, 1972 - Apollo 16. A view from the Landing Module, looking toward the Command and Service Module with Earth over the lunar horizon. Astronauts John Young and Charles Duke took this shot as they piloted the LM down to the lunar surface.

[güttsfükk]

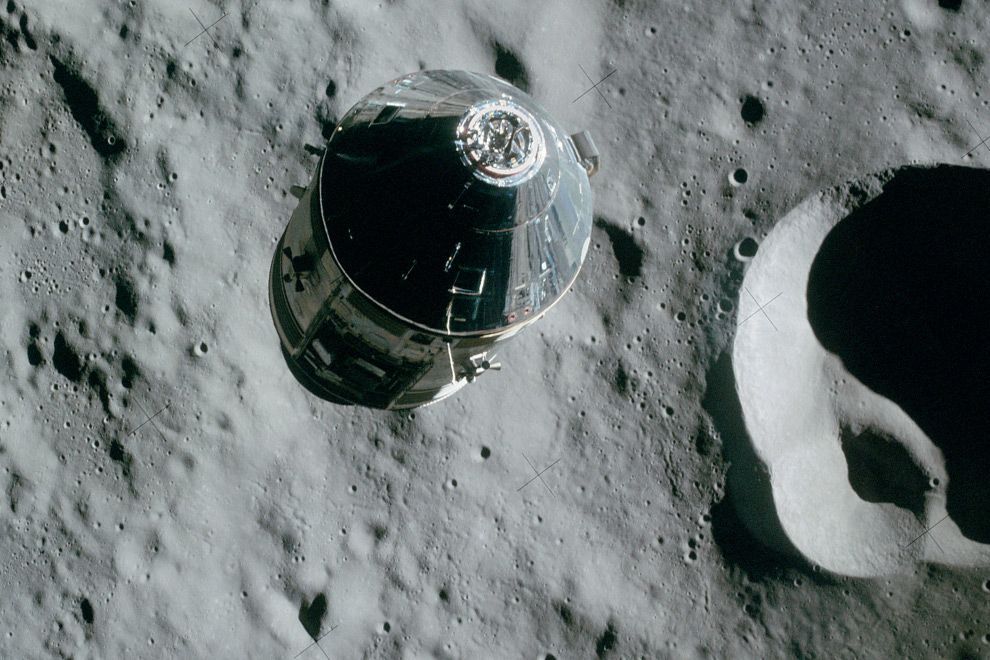

Also April 20, 1972 - The Command and Service Module named "Casper" viewed from the Lunar Module shortly after undocking. Astronaut Ken Mattingly stayed aboard the CSM while the LM went to the surface - orbiting over 60 times, and performing twenty-six separate scientific experiments.
