Firearm Injuries - A Brief Overview

Click image for larger version

Name:	gsw1.jpg
Views:	506
Size:	52.6 KB
ID:	517815

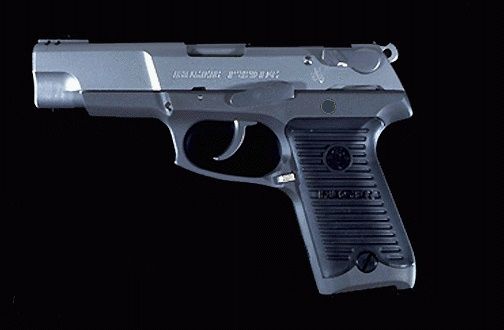

Autoloading, semi-automatic pistol. The force generated from each bullet fired causes a new round to be chambered from the magazine

Click image for larger version

Name:	gsw2.jpg
Views:	742
Size:	41.8 KB
ID:	517816

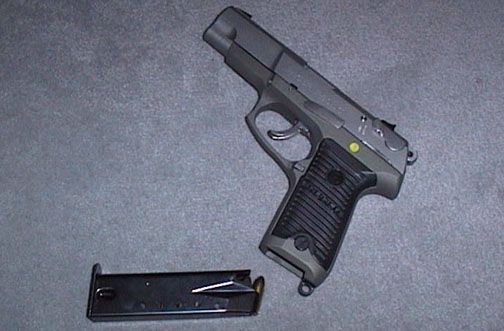

The detachable magazine that holds 17 rounds is placed into the grip

Click image for larger version

Name:	gsw3.jpg
Views:	461
Size:	39.3 KB
ID:	517817

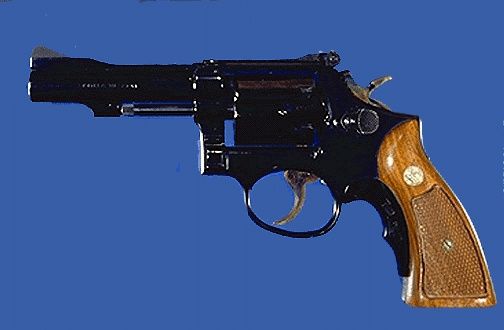

Six round revolver

Click image for larger version

Name:	gsw4.jpg
Views:	522
Size:	16.3 KB
ID:	517799
Semi-automatic rifle. A rifle is a firearm with a long barrel, which gives the larger rounds more accuracy and range. The energy of the fired bullets is enormous. The .308 caliber copper jacketed bullets fired by this rifle can blow a hole in plate steel 1/4" thick

Click image for larger version

Name:	gsw5.jpg
Views:	825
Size:	63.7 KB
ID:	517800

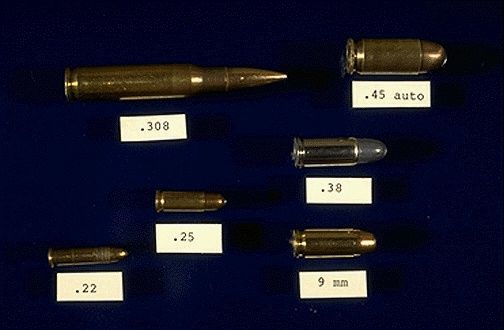

The appearances of the most common handgun and rifle rounds are shown here. In general, it is difficult to tell from the wound exactly what round was used

Click image for larger version

Name:	gsw6.jpg
Views:	487
Size:	61.2 KB
ID:	517801

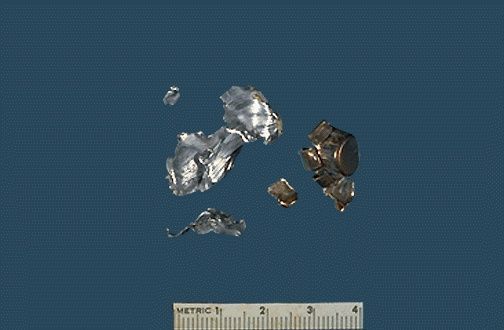

When bullets strike a target, there can be considerable deformation and fragmentation. In this case, the lead bullet has become markedly deformed and has separated from the copper jacket at the right

Click image for larger version

Name:	gsw7.jpg
Views:	707
Size:	63.6 KB
ID:	517802

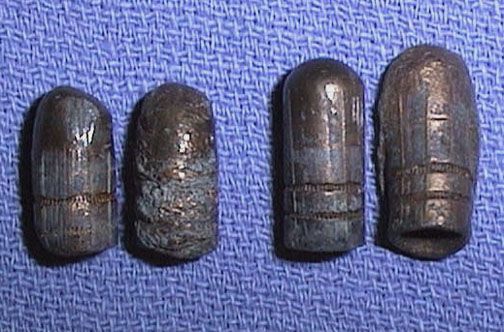

Bullets fired from a gun will have "striae" (linear grooves) imparted as a consequence of traversing the barrel, and these marks help to identify the weapon. Comparison of bullets involves "class" (caliber and rifling) and "individual" characteristics based upon burrs or imperfections in the barrel, particularly the muzzle, that impart specific markings, or striae, to fired bullets. Individual characteristics are used to try and determine if a specific gun was used in a crime. The sets of bullets shown here are from the same class, but deformations in recovered bullets (the right of each pair) can complicate comparison

Click image for larger version

Name:	gsw8.jpg
Views:	589
Size:	64.6 KB
ID:	517803

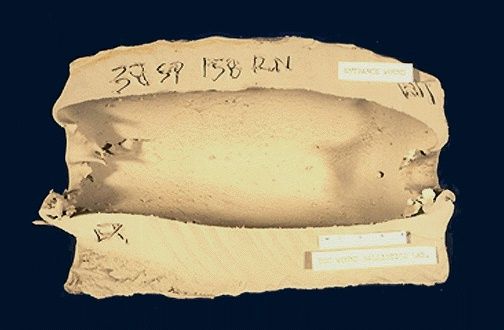

Much of the damage done by a bullet results from the tumbling motion and the cavitation in the tissue. This is the bullet track in clay from a .38 caliber round, demonstrating that the wound track is much larger than .38 inches

Click image for larger version

Name:	gsw9.jpg
Views:	2599
Size:	36.9 KB
ID:	517804
Contact gunshot entrance wound. Since the barrel contacts the skin, the gases released by the fired round go into the subcutaneous tissue and cause the star-shaped laceration. Note also the grey-black discoloration from the soot, as well as the faint abrasion ring

Click image for larger version

Name:	gsw10.jpg
Views:	2147
Size:	29.6 KB
ID:	517805
An abrasion ring, formed when the force of the gases entering below the skin blows the skin surface back against the muzzle of the gun, is seen here in this contact range gunshot wound to the right temple

Click image for larger version

Name:	gsw11.jpg
Views:	1167
Size:	82.6 KB
ID:	517806
Abrasion ring and a very clear muzzle imprint, are seen in this contact range gunshot wound

Click image for larger version

Name:	gsw12.jpg
Views:	880
Size:	105.0 KB
ID:	517808
This is a contact range gunshot entrance wound with grey-black discoloration from the burned powder

Click image for larger version

Name:	gsw13.jpg
Views:	513
Size:	53.3 KB
ID:	517807

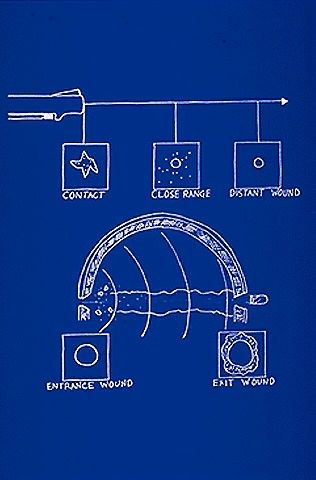

The diagram above illustrates the basic differences between the skin appearance of a close-range contact wound and distant range wound. The appearance of the wounding characteristics in the skull is shown in the lower diagram in which there is bevelling of the skull outward away from the direction of origin of the bullet

Click image for larger version

Name:	gsw14.jpg
Views:	577
Size:	93.4 KB
ID:	517809
The surface of the skull demonstrates the heavy soot in this contact range entrance wound, as well as radiating fracture lines

Click image for larger version

Name:	gsw15.jpg
Views:	688
Size:	112.4 KB
ID:	517810
Histologic examination of the entrance wound site on the skin shows black gunshot residue and coagulative necrosis

Click image for larger version

Name:	gsw16.jpg
Views:	1373
Size:	30.7 KB
ID:	517811
This is an intermediate range gunshot entrance wound in which there is powder "tattooing" around the entrance site

Click image for larger version

Name:	gsw17.jpg
Views:	3803
Size:	82.4 KB
ID:	517812
Powder tattooing is seen in this intermediate range gunshot wound. The actual entrance site is somewhat irregular, because the bullet can tumble in flight

Click image for larger version

Name:	gsw18.jpg
Views:	1121
Size:	56.2 KB
ID:	517813
Displayed here is an entrance at the left and an exit at the right. This particular bullet struck at an angle to produce the ovoid entrance. Exit wounds vary considerably in size and shape because the bullet can be deformed in its transit through the body. There may be no exit wound at all if the bullet's energy is absorbed by the tissues. Some bullets are designed to deform so that all their energy will be converted to tissue damage and not exit

Click image for larger version

Name:	gsw19.jpg
Views:	647
Size:	55.2 KB
ID:	517814
Here is a slit-like exit wound. The projectile becamed deformed and flattened while traversing the body, producing a laceration upon exit. Note that there is no powder or soot visible in this exit wound

Reply With Quote
The Following 29 Users Say Thank You to Sharon For This Useful Post:
Ashen, BBKF, Beloved, blancadon, durt, Faline, FavaBeans, flutter mouse, gatagato, imbok, jadie88, JakeHarper, kellyhound, Kelseecat65, kZAAAPer, MeMyselfandI, Metal Mike, MisterX, nanigodsmum, nanocide, Norwegian1, Olivia, oriente, Spiffyfable, SusanMarie, vagabond, vanb, WhatTheFXUp, wujuan
  #2
Old 02-22-2014, 02:58 PM
dogleg818's Avatar
dogleg818
Online
Hell is full!
Poster Rank:622
Human.
Join Date: Nov 2009

Mentioned: 1 Post(s)
Quoted: 175 Post(s)
Activity Longevity
2/20 15/20
Today Posts
1/11 sssss1068
Re: Firearm Injuries - A Brief Overview

Good post!

Reply With Quote
  #3
Old 02-22-2014, 03:07 PM
blancadon's Avatar
blancadon
Offline:
Devient
Poster Rank:201
Join Date: Feb 2010
Contributions: 1

Mentioned: 1 Post(s)
Quoted: 583 Post(s)
Activity Longevity
0/20 15/20
Today Posts
0/11 sssss5326
Re: Firearm Injuries - A Brief Overview

The histologic examination of the entrance wound site on the skin looks like a lunar landscape. Nice and informative post!

Reply With Quote
  #4
Old 02-22-2014, 04:52 PM
Shakey's Avatar
Shakey
Offline:
★ Legacy Member ★
Poster Rank:11
MAN
Join Date: Nov 2009

Mentioned: 712 Post(s)
Quoted: 34382 Post(s)
Activity Longevity
20/20 15/20
Today Posts
11/11 ssss57098
Re: Firearm Injuries - A Brief Overview


Reply With Quote
  #5
Old 02-22-2014, 04:57 PM
Caduceus
Offline:
My Rank: PRIVATE FIRST CLASS
Poster Rank:3192
Join Date: Apr 2012

Mentioned: 0 Post(s)
Quoted: 14 Post(s)
Activity Longevity
2/20 11/20
Today Posts
0/11 sssssss82
Re: Firearm Injuries - A Brief Overview

I studied those same pics in med school. Utah state I think has some good ones too. Nice.

Reply With Quote
The Following User Says Thank You to Caduceus For This Useful Post:
Sharon
  #6
Old 02-22-2014, 05:24 PM
Sharon's Avatar
Sharon
Offline:
♚ Legacy Gold Member ♚
Poster Rank:13
Horror Whore
Join Date: Nov 2008
Contributions: 204

Mentioned: 90 Post(s)
Quoted: 2161 Post(s)
Activity Longevity
5/20 17/20
Today Posts
0/11 ssss54184
Re: Firearm Injuries - A Brief Overview

Quote:
Originally Posted by Caduceus View Post
I studied those same pics in med school. Utah state I think has some good ones too. Nice.
Think that's where these are from

Reply With Quote
The Following 2 Users Say Thank You to Sharon For This Useful Post:
BBKF, durt
  #7
Old 02-22-2014, 08:52 PM
durt's Avatar
durt
Offline:
★ Legacy Member ★
Poster Rank:67
male
Join Date: Apr 2010
Contributions: 1

Mentioned: 28 Post(s)
Quoted: 3961 Post(s)
Activity Longevity
7/20 15/20
Today Posts
0/11 ssss16647
Re: Firearm Injuries - A Brief Overview

Interesting, thanks Sharon!

Reply With Quote
The Following User Says Thank You to durt For This Useful Post:
BBKF
  #8
Old 02-22-2014, 09:09 PM
cupcake725's Avatar
cupcake725
Offline:
My Rank: MASTER GUNNERY SERGEANT
Poster Rank:275
female
Join Date: Dec 2013
Contributions: 2

Mentioned: 0 Post(s)
Quoted: 2014 Post(s)
Activity Longevity
0/20 9/20
Today Posts
0/11 sssss3438
Re: Firearm Injuries - A Brief Overview

I really like your posts. Clinical and no bullshit.

Reply With Quote
The Following 3 Users Say Thank You to cupcake725 For This Useful Post:
BBKF, JakeHarper, Norwegian1
  #9
Old 02-22-2014, 09:47 PM
Arevalosocom's Avatar
Arevalosocom
Offline:
My Rank: CORPORAL
Poster Rank:1182
Join Date: Feb 2010

Mentioned: 0 Post(s)
Quoted: 49 Post(s)
Activity Longevity
0/20 15/20
Today Posts
0/11 ssssss381
Re: Firearm Injuries - A Brief Overview

I like this thread.

Reply With Quote
The Following User Says Thank You to Arevalosocom For This Useful Post:
BBKF
  #10
Old 02-22-2014, 10:05 PM
BBKF's Avatar
BBKF
Offline:
★ Legacy Member ★
Poster Rank:673
Female
Join Date: Feb 2010

Mentioned: 3 Post(s)
Quoted: 284 Post(s)
Activity Longevity
0/20 15/20
Today Posts
0/11 ssssss937
Re: Firearm Injuries - A Brief Overview

Great post again, Sharon!!!
